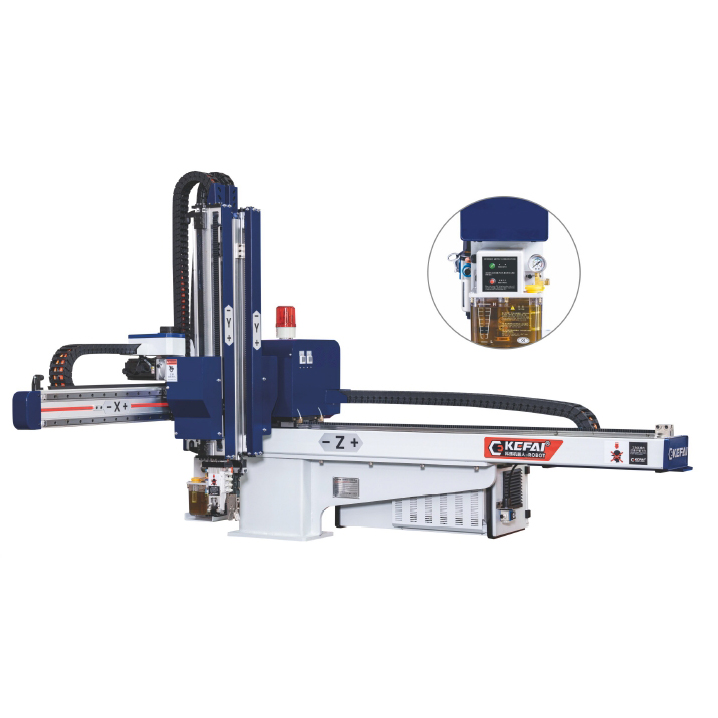

5 Axis for 90~680Ton
Labor saving, stable cycle, high safety, suitable for all types of horizontal injection molding machines of 120-4000 tons, used in the removal of finished products with higher appearance and precision
Benefits & Features
Suitable for 90-680T injection molding machine
● The modular production and high-strength aluminum alloy precision casting is used for the overall machine.
● The high-strength aluminum extrusion profiles are used for CNC machine-shaping arm to achieve the high speed, high rigidity, lower vibration, abrasion resistance
● More long service life with the help of the precision linear sliding rails.
● Applicable for various products with good universality.
|Vacuum confirmation circuit||While part need to use suction cup by vacuum, one set for standard,(Extra one need cost)|
|Mold area movement||Robot can do horizontal movement freely in the mold area to take out the product with barb or others.|
|Release or grip in mold area||Can release part or runner in mold area after grip the runner or absorb the part.|
|Outside mold area stand-by||Robot can stand-by outside mold(outside the safety door) when robot end arm meets those mold obstructions.|
|Language selection||Language can be changed between Chinese and English.|
|Standard program sequences||Use with standard program sequence.|
|Conveyor interface||Control conveyor to run or stop.|
|Free edit mode||Freely programmable teach programs for flexible applications.|
|Out mold descent slow speed||Used to slow the speed when the product is taken out mold, to avoid accidents.|
|Grip pressure||You can have a precision adjustment of the grip pressure to ensure the products can be take out stability without any damage.|
|Quick exhaust||The exhaust valve at the air supply system is added to exhaust air quickly to release air pressure, it is used when a new mold will be changes to reset all actions, with this function an operator don’t need to do a improper operation(Remove the air supply system connector to exhaust) to avoid any damage.|
|Mid-Mold induction||Just after the mid-mold in right position signal confirmed, the robot second arm(assistant arm) will move down into mold area.|
|Air nipper circuit||While cutting runner, use this function.(Scissor device is optional)|
|Arm type||Telescopic type|
|Drive system||X Y Z Servo motor|
|Max loading (with tool)||kg||3||3||5||5|
|Min take time||sec||2||2||3||3|
|Dry cycle time||sec||9||9.5||9.5||9.5|
|Working air pressure||kgf/c㎡||5-7||5-7||5-7||5-7|
|Power||AC||220V 50-60HZ||220V 50-60HZ||220V 50-60HZ||220V 50-60HZ|
|Product size||m||2.00 *1.70 *1.50||2.00 *1.70 *1.60||2.30 *1.70 *1.70||2.50 *1.70 *1.80|
|Packing size||m||2.05 *1.75 *1.60||2.05 *1.75 *1.70||2.35 *1.75 *1.80||2.55 *1.75 *1.90|
|Applicable IMM model||T||90-200||250-320||380-480||530-680|
*The parameters are for reference only, please contact your sales representative for details.
