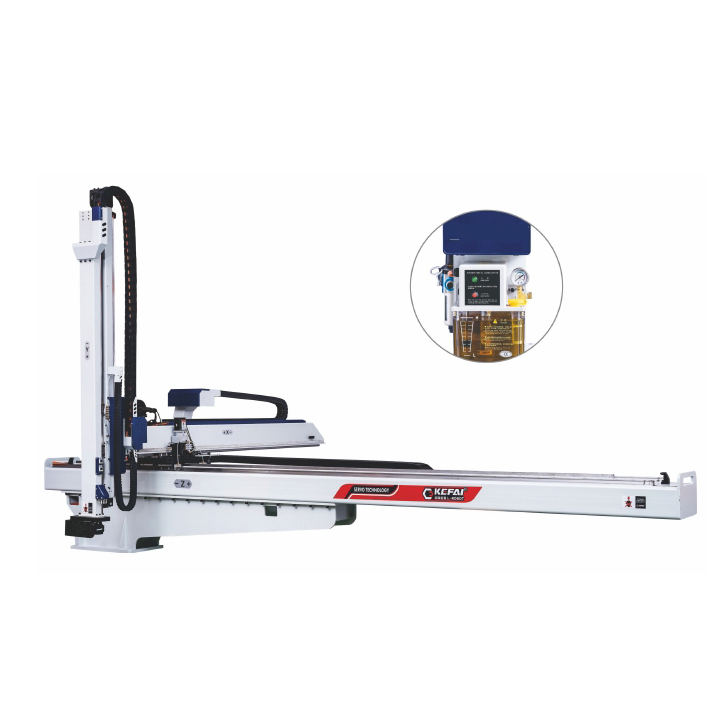

3 Axis for 700~1200Ton
Labor saving, stable cycle, high safety, suitable for all types of horizontal injection molding machines of 60-4000 tons, used in the removal of finished products with higher appearance and precision
Description
Benefits & Features
Suitable for 2100–2800T injection molding machine
● X Y Z A are driven by AC servo motor. Conditioning treatment.precision CNC machining. The deformation rate is small. The machine is more stable, and the slider has a longer life.
●Machine standard,maintenance-free automatic lubrication svstem, to avoid the danger ofpersonnel maintenance equipment climbing the machine, extend the life of the machine.
●The arm adopts the unique 90-degree interlock structure, three-track balance, faster than thetraditionalparallel contact speed, more rigid, faster pick-up speed, shorten the production cycle.
Standard Function | |
| Vacuum confirmation circuit | While part need to use suction cup by vacuum, one set for standard,(Extra one need cost) |
| Mold area movement | Robot can do horizontal movement freely in the mold area to take out the product with barb or others. |
| Release or grip in mold area | Can release part or runner in mold area after grip the runner or absorb the part. |
| Outside mold area stand-by | Robot can stand-by outside mold(outside the safety door) when robot end arm meets those mold obstructions. |
| Language selection | Language can be changed between Chinese and English. |
| Standard program sequences | Use with standard program sequence. |
| Conveyor interface | Control conveyor to run or stop. |
| Free edit mode | Freely programmable teach programs for flexible applications. |
| Out mold descent slow speed | Used to slow the speed when the product is taken out mold, to avoid accidents. |
| Grip pressure | You can have a precision adjustment of the grip pressure to ensure the products can be take out stability without any damage. |
| Quick exhaust | The exhaust valve at the air supply system is added to exhaust air quickly to release air pressure, it is used when a new mold will be changes to reset all actions, with this function an operator don’t need to do a improper operation(Remove the air supply system connector to exhaust) to avoid any damage. |
| Mid-Mold induction | Just after the mid-mold in right position signal confirmed, the robot second arm(assistant arm) will move down into mold area. |
| Optional Function | |
| Air nipper circuit | While cutting runner, use this function.(Scissor device is optional) |
Specs
| Model | Unit | KAW-2000-T | KAW-2200-T |
| Arm type | Telescopic type | ||
| Vertical stroke | mm | 2000 | 2200 |
| Crosswise stroke | mm | 2200 | 2400 |
| Swing stroke | mm | 3200 | 3500 |
| Drive system | X Y Z Servo motor | ||
| Swing angel | degree | 90 | 90 |
| Max loading(with tool) | kg | 10 | 10 |
| Min take time | sec | 2 | 2 |
| Dry cycle time | sec | 9 | 9.5 |
| Working air pressure | kgf/c㎡ | 5-7 | 5-7 |
| Air consumption | NL/cycle | 25 | 25 |
| Power consumption | KVA | 1.5 | 1.5 |
| Power | AC | 220V 50-60HZ | 220V 50-60HZ |
| Net weight | Kg | 800 | 900 |
| Gross weight | Kg | 850 | 950 |
| Product size | m | 3.20*2.20*2.30 | 3.50*2.40*2.50 |
| Packing size | m | 3.25*2.25*2.40 | 3.55*2.45*2.60 |
| Applicable IMM model | T | 700-900 | 1000-1200 |
*The parameters are for reference only, please contact your sales representative for details.
