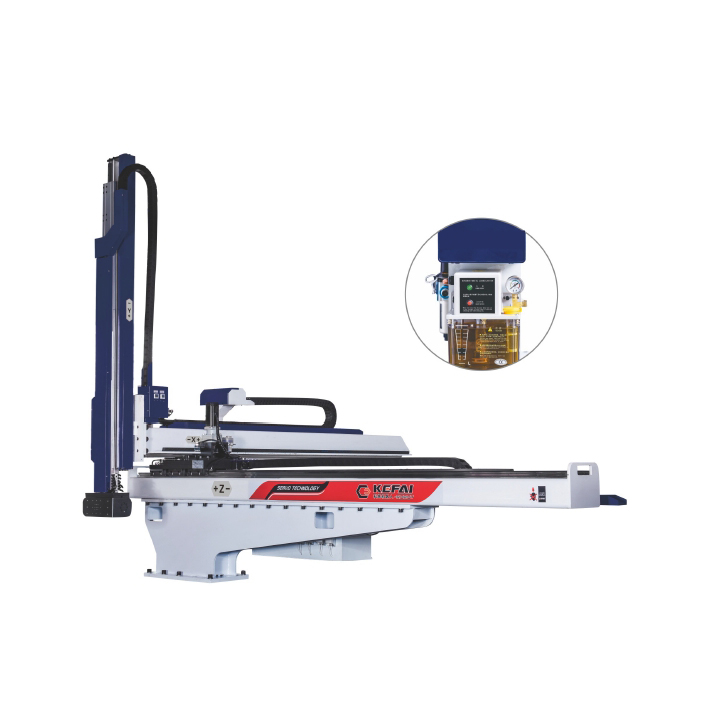

4 Axis for 700~1200Ton
Labor saving, stable cycle, high safety, suitable for all types of horizontal injection molding machines of 60-4000 tons, used in the removal of finished products with higher appearance and precision
Description
Benefits & Features
Suitable for 60-1200T injection molding machine
● The modular production and high-strength aluminum alloy precision casting is used for the overall machine.
● The high-strength aluminum extrusion profiles are used for CNC machine-shaping arm to achieve the high speed, high rigidity, lower vibration, abrasion resistance
● More long service life with the help of the precision linear sliding rails.
● Applicable for various products with good universality.
Standard Function | |
| Vacuum confirmation circuit | While part need to use suction cup by vacuum, one set for standard,(Extra one need cost) |
| Mold area movement | Robot can do horizontal movement freely in the mold area to take out the product with barb or others. |
| Release or grip in mold area | Can release part or runner in mold area after grip the runner or absorb the part. |
| Outside mold area stand-by | Robot can stand-by outside mold(outside the safety door) when robot end arm meets those mold obstructions. |
| Language selection | Language can be changed between Chinese and English. |
| Standard program sequences | Use with standard program sequence. |
| Conveyor interface | Control conveyor to run or stop. |
| Free edit mode | Freely programmable teach programs for flexible applications. |
| Out mold descent slow speed | Used to slow the speed when the product is taken out mold, to avoid accidents. |
| Grip pressure | You can have a precision adjustment of the grip pressure to ensure the products can be take out stability without any damage. |
| Quick exhaust | The exhaust valve at the air supply system is added to exhaust air quickly to release air pressure, it is used when a new mold will be changes to reset all actions, with this function an operator don’t need to do a improper operation(Remove the air supply system connector to exhaust) to avoid any damage. |
| Mid-Mold induction | Just after the mid-mold in right position signal confirmed, the robot second arm(assistant arm) will move down into mold area. |
| Optional Function | |
| Air nipper circuit | While cutting runner, use this function.(Scissor device is optional) |
Specs
| Model | Unit | KAW-2200-F | KAW-2400-F | KAW-2800-F | KAW-3300-F |
| Arm type | Double section | ||||
| Vertical stroke | mm | 2200 | 2400 | 2800 | 3300 |
| Crosswise stroke | mm | 2800 | 3000 | 3200 | 3500 |
| Swing stroke | mm | 3500 | 3800 | 4200 | 4500 |
| Drive system | X Y Z A Servo motor | ||||
| Swing angel | degree | 270 | 270 | 270 | 270 |
| Max loading(with tool) | kg | 15 | 20 | 25 | 30 |
| Min take time | sec | 4 | 5 | 6 | 8 |
| Dry cycle time | sec | 15 | 16 | 18 | 20 |
| Working air pressure | kgf/c㎡ | 5-7 | 5-7 | 5-7 | 5-7 |
| Air consumption | NL/cycle | 25 | 25 | 30 | 30 |
| Power consumption | KVA | 1.5 | 1.5 | 1.8 | 1.8 |
| Power | AC | 220V 50-60HZ | 220V 50-60HZ | 220V 50-60HZ | 220V 50-60HZ |
| Net weight | Kg | 800 | 900 | 1200 | 1500 |
| Gross weight | Kg | 850 | 950 | 1250 | 1550 |
| Product size | m | 3.50 *2.80 *2.50 | 3.80 *3.00 *2.70 | 4.20 *3.20 *3.10 | 4.50 *3.50 *3.60 |
| Packing size | m | 3.55 *2.85 *2.60 | 3.85 *3.05 *2.80 | 4.25 *3.25 *3.20 | 4.55 *3.55 *3.70 |
| Applicable IMM model | T | 1300-1600 | 2000-2400 | 2800-3000 | 4000 |
*The parameters are for reference only, please contact your sales representative for details.
