Standard Vertical Injection
Capacity:25 Ton~450 Ton
Vertical injection molding machines can be precisely matched to your specific injection molding task, while maintaining the best ergonomic technology. A variety of flexible vertical injection molding as well as task-specific equipment packages are available, for example for thermoset or silicone processing.
Description
Benefits & Features
Vertical injection molding machines function the same as traditional horizontal injection molding machines, however they are orientated to operate on the vertical axis. Vertical injection molding machines often incorporate a shuttle or rotary table, allowing loading and demolding within the machines cycle time.

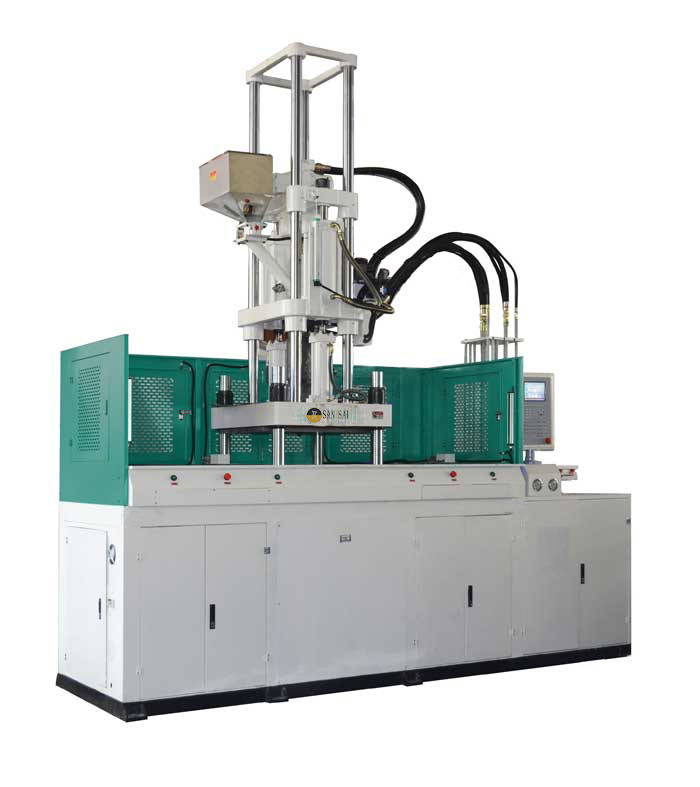

SANTSAI vertical injection molding machines can be precisely matched to your specific injection molding task, while maintaining the best ergonomic technology. A variety of flexible vertical injection molding as well as task-specific equipment packages are available, for example for thermoset or silicone processing.
• Vertical four column clamping, vertical injection, ease to put and take out inserts.
• Single slide design, item put and take out of the work area, which shares ease operate, high safety character.
• Four column single slide table machine (1 upper mold, 1 bottom mold)
Please Click The Below Quick Links,Find Out Suitable Machine Model
Specs
| Specification | |||||
| Model | Unit | DV-250DS | |||
| ( Injection Unit ) | Screw diameter | mm | Ф25 | Ф28 | Ф32 |
| Maximum injection pressure | Kg/cm2 | 1814 | 1446 | 1107 | |
| Theoretical shot volume | cm3 | 49 | 61 | 80 | |
| Maximum shot weight（PS） | g/Oz | 45(1.6) | 56（2.0） | 74（2.6） | |
| Injection rate | cm3/sec | 37 | 46 | 60 | |
| ( Clamping Unit ) | Clamping force | ton | 25 | ||
| Sliding Table Stroke | mm | 350 | |||
| tie bar distance | mm | 355 × 225 | |||
| Minimum mold thickness | mm | 100/180（Can be customized according to customer requirements） | |||
| Opening stroke | mm | 180 | |||
| Open daylight | mm | 280/360（As required） | |||
| Ejector force | T | 1（Can be customized according to customer requirements） | |||
| Ejector stroke | mm | 55 | |||
| ( Others ) | Pump motor power | Kw | 4 | ||
| Hydraulic system pressure | Kg/cm2 | 140 | |||
| Barrel heating power | Kw | 2.7 | |||
| Total wattage | Kw | 6.7 | |||
| Oil tank capacity | L | 120 | |||
| Machine weight (approx.) | T | 1.2 | |||
| Machine dimensions(approx.) | m | 1.5×1.8× 2.4 | |||
| Specification | |||||
| Model | Unit | DV-400DS | |||
| ( Injection Unit ) | Screw diameter | mm | Ф28 | Ф32 | Ф36 |
| Maximum injection pressure | Kg/cm2 | 2000 | 1531 | 1210 | |
| Theoretical shot volume | cm3 | 74 | 97 | 122 | |
| Maximum shot weight（PS） | g/Oz | 68（2.4） | 89（3.1） | 113（4.0） | |
| Injection rate | cm3/sec | 42 | 55 | 70 | |
| ( Clamping Unit ) | Clamping force | ton | 40 | ||
| Sliding Table Stroke | mm | 420 | |||
| tie bar distance | mm | 410 × 255 | |||
| Minimum mold thickness | mm | 150/250（Can be customized according to customer requirements） | |||
| Opening stroke | mm | 200 | |||
| Open daylight | mm | 350/450（As required） | |||
| Ejector force | T | 1.5（Can be customized according to customer requirements） | |||
| Ejector stroke | mm | 55 | |||
| ( Others ) | Pump motor power | Kw | 5.5 | ||
| Hydraulic system pressure | Kg/cm2 | 140 | |||
| Barrel heating power | Kw | 3.6 | |||
| Total wattage | Kw | 9.1 | |||
| Oil tank capacity | L | 210 | |||
| Machine weight (approx.) | T | 2 | |||
| Machine dimensions(approx.) | m | 1.8×1.5× 2.5 | |||
| Specification | |||||
| Model | Unit | DV-600DS | |||
| ( Injection Unit ) | Screw diameter | mm | Ф32 | Ф36 | Ф42 |
| Maximum injection pressure | Kg/cm2 | 1531 | 1210 | 1190 | |
| Theoretical shot volume | cm3 | 97 | 122 | 194 | |
| Maximum shot weight（PS） | g/Oz | 89（3.1） | 113（4.0） | 176（6.3） | |
| Injection rate | cm3/sec | 55 | 70 | 109 | |
| ( Clamping Unit ) | Clamping force | ton | 60 | ||
| Sliding Table Stroke | mm | 500 | |||
| tie bar distance | mm | 460× 310 | |||
| Minimum mold thickness | mm | 200/300（Can be customized according to customer requirements） | |||
| Opening stroke | mm | 250 | |||
| Open daylight | mm | 450/550（As required） | |||
| Ejector force | T | 2（Can be customized according to customer requirements） | |||
| Ejector stroke | mm | 65 | |||
| ( Others ) | Pump motor power | Kw | 7.5 | ||
| Hydraulic system pressure | Kg/cm2 | 140 | |||
| Barrel heating power | Kw | 5.55 | |||
| Total wattage | Kw | 13.05 | |||
| Oil tank capacity | L | 245 | |||
| Machine weight (approx.) | T | 2.7 | |||
| Machine dimensions(approx.) | m | 1.9×1.8× 2.9 | |||
| Specification | ||||||
| Model | Unit | DV-850DS | ||||
| ( Injection Unit ) | Screw diameter | mm | Ф36 | Ф42 | Ф46 | Ф48 |
| Maximum injection pressure | Kg/cm2 | 2074 | 1523 | 1270 | 1166 | |
| Theoretical shot volume | cm3 | 162 | 221 | 266 | 289 | |
| Maximum shot weight（PS） | g/Oz | 150（5.3） | 203（7.1） | 245(8.7) | 266（9.4） | |
| Injection rate | cm3/sec | 88 | 120 | 134 | 157 | |
| ( Clamping Unit ) | Clamping force | ton | 85 | |||
| Sliding Table Stroke | mm | 590 | ||||
| tie bar distance | mm | 510× 360 | ||||
| Minimum mold thickness | mm | 200/300（Can be customized according to customer requirements） | ||||
| Opening stroke | mm | 250 | ||||
| Open daylight | mm | 450/550（As required） | ||||
| Ejector force | T | 2.7（Can be customized according to customer requirements） | ||||
| Ejector stroke | mm | 65 | ||||
| ( Others ) | Pump motor power | Kw | 15 | |||
| Hydraulic system pressure | Kg/cm2 | 140 | ||||
| Barrel heating power | Kw | 7 | ||||
| Total wattage | Kw | 22 | ||||
| Oil tank capacity | L | 390 | ||||
| Machine weight (approx.) | T | 3.8 | ||||
| Machine dimensions(approx.) | m | 2.9×1.3× 3.2 | ||||
| Specification | ||||||
| Model | Unit | DV-1000DS | ||||
| ( Injection Unit ) | Screw diameter | mm | Ф36 | Ф42 | Ф46 | Ф48 |
| Maximum injection pressure | Kg/cm2 | 2570 | 1888 | 1574 | 1446 | |
| Theoretical shot volume | cm3 | 183 | 249 | 298 | 325 | |
| Maximum shot weight（PS） | g/Oz | 162（5.7） | 221（7.8） | 266（9.4） | 289（10.2） | |
| Injection rate | cm3/sec | 101 | 137 | 165 | 179 | |
| ( Clamping Unit ) | Clamping force | ton | 100 | |||
| Sliding Table Stroke | mm | 620 | ||||
| tie bar distance | mm | 560× 400 | ||||
| Minimum mold thickness | mm | 200/300（Can be customized according to customer requirements） | ||||
| Opening stroke | mm | 270 | ||||
| Open daylight | mm | 470/570（As required） | ||||
| Ejector force | T | 2.7（Can be customized according to customer requirements） | ||||
| Ejector stroke | mm | 75 | ||||
| ( Others ) | Pump motor power | Kw | 15 | |||
| Hydraulic system pressure | Kg/cm2 | 140 | ||||
| Barrel heating power | Kw | 7 | ||||
| Total wattage | Kw | 22 | ||||
| Oil tank capacity | L | 400 | ||||
| Machine weight (approx.) | T | 4.4 | ||||
| Machine dimensions(approx.) | m | 3.0×1.3× 3.3 | ||||
