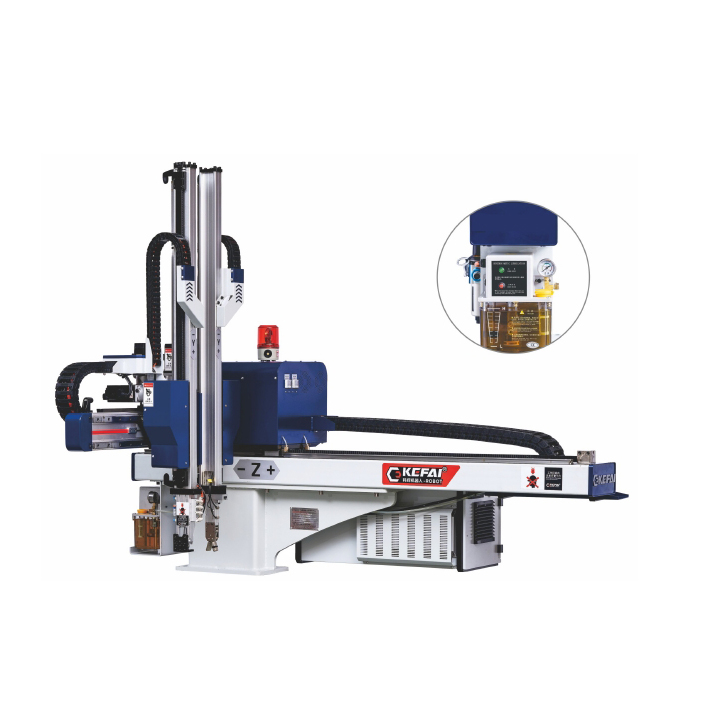

3 Axis for 60~200Ton with Two arms
Labor saving, stable cycle, high safety, suitable for all types of horizontal injection molding machines of 60-4000 tons, used in the removal of finished products with higher appearance and precision
Description
Benefits & Features
Suitable for 60-200T injection molding machine
● The modular production and high-strength aluminum alloy precision casting is used for the overall machine.
● The high-strength aluminum extrusion profiles are used for CNC machine-shaping arm to achieve the high speed, high rigidity, lower vibration, abrasion resistance
● More long service life with the help of the precision linear sliding rails.
● Applicable for various products with good universality.
Standard Function | |
| Vacuum confirmation circuit | While part need to use suction cup by vacuum, one set for standard,(Extra one need cost) |
| Mold area movement | Robot can do horizontal movement freely in the mold area to take out the product with barb or others. |
| Release or grip in mold area | Can release part or runner in mold area after grip the runner or absorb the part. |
| Outside mold area stand-by | Robot can stand-by outside mold(outside the safety door) when robot end arm meets those mold obstructions. |
| Language selection | Language can be changed between Chinese and English. |
| Standard program sequences | Use with standard program sequence. |
| Conveyor interface | Control conveyor to run or stop. |
| Free edit mode | Freely programmable teach programs for flexible applications. |
| Out mold descent slow speed | Used to slow the speed when the product is taken out mold, to avoid accidents. |
| Grip pressure | You can have a precision adjustment of the grip pressure to ensure the products can be take out stability without any damage. |
| Quick exhaust | The exhaust valve at the air supply system is added to exhaust air quickly to release air pressure, it is used when a new mold will be changes to reset all actions, with this function an operator don’t need to do a improper operation(Remove the air supply system connector to exhaust) to avoid any damage. |
| Mid-Mold induction | Just after the mid-mold in right position signal confirmed, the robot second arm(assistant arm) will move down into mold area. |
| Optional Function | |
| Air nipper circuit | While cutting runner, use this function.(Scissor device is optional) |
Specs
| Model | Unit | KAS-850PR | KAS-950PR | KAS-1100PR |
| Arm type | Doubel section | |||
| Vertical stroke | mm | 850 | 950 | 1000 |
| Crosswise stroke | mm | 800 | 900 | 1100 |
| Swing stroke | mm | 1840 | 1840 | 2000 |
| Drive system | X Y Z Servo motor | |||
| Swing angel | degree | 90 | 90 | 90 |
| Max loading(with tool) | kg | 3 | 3 | 3 |
| Min take time | sec | 2 | 2 | 2.5 |
| Dry cycle time | sec | 9 | 9.5 | 10 |
| Working air pressure | kgf/c㎡ | 5-7 | 5-7 | 5-7 |
| Air consumption | NL/cycle | 25 | 25 | 30 |
| Power consumption | KVA | 1.5 | 1.5 | 1.5 |
| Power | AC | 220V 50-60HZ | 220V 50-60HZ | 220V 50-60HZ |
| Net weight | Kg | 220 | 230 | 240 |
| Gross weight | Kg | 250 | 260 | 270 |
| Product size | m | 2.00 *1.70 *1.50 | 2.00 *1.70 *1.60 | 2.30 *1.70 *1.70 |
| Packing size | m | 2.05 *1.75 *1.60 | 2.05 *1.75 *1.70 | 2.35 *1.75 *1.80 |
| Applicable IMM model | T | 90-120 | 160-200 | 250-320 |
*The parameters are for reference only, please contact your sales representative for details.
