10 Ton 180° Mold Flipper
Capacity:5~50 Ton

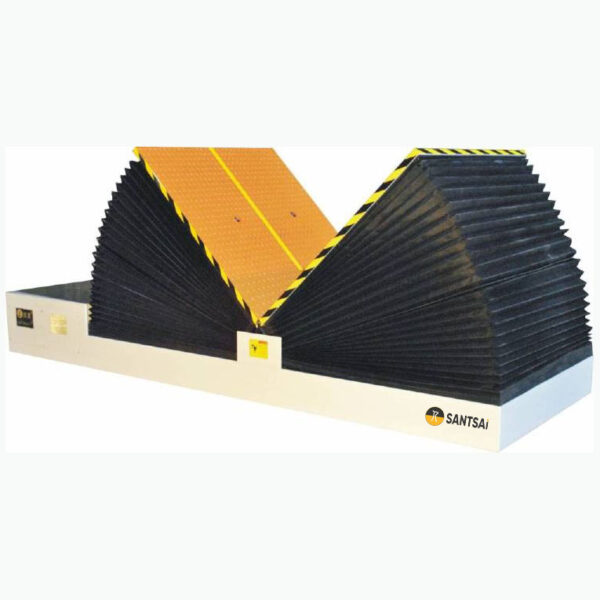

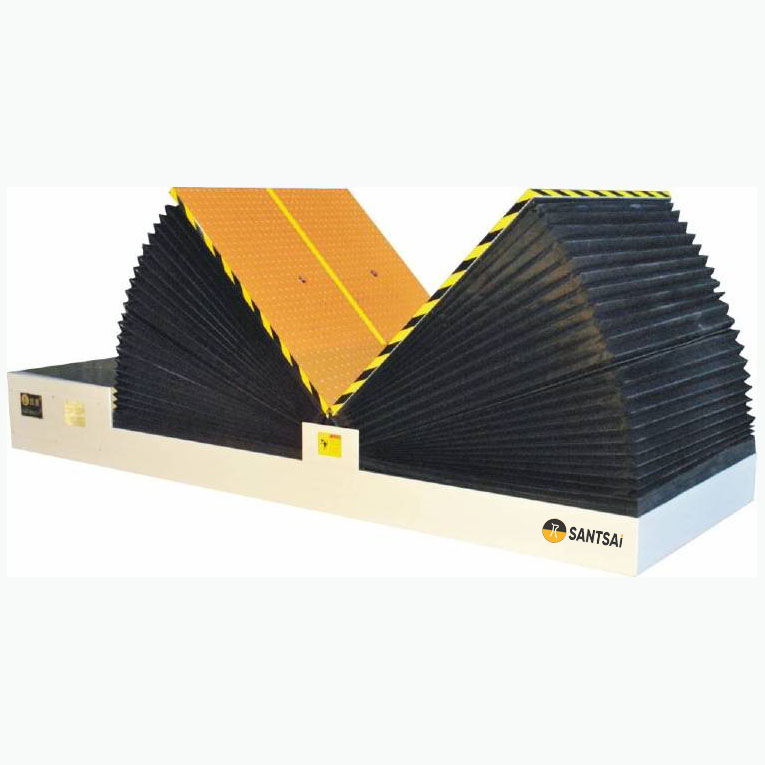

180 degree Mold Turning Machine is an indispensable auxiliary equipment for turning medium to large sized molds. It is the prefect counterpart to be used in conjunction with any vertical die spotting press machines. It is also the ideal equipment for repairing any large sized molds.
Description
Benefits & Features
When any die / mould used in horizontal Injection moulding or Die Casting Machine is to be opened for maintenance, it requires to be turned 90 degree first. Smaller moulds are easier to turn 90 degree however when moulds are very big and heavy, it’s a very risky, time taking and laborious job.In order to turning the large dies / moulds is safer and quicker. We have two solutions for this – 90 degree turn Table and 180 degree Mould Flipper.
180 degree Mold Turning Machine is an indispensable auxiliary equipment for turning medium to large sized molds. It is the prefect counterpart to be used in conjunction with any vertical die spotting press machines. It is also the ideal equipment for repairing any large sized molds.
● Hydraulic cylinder driven
● Make the mold & die rev rse at 90 degree
● Fast and convenient overturning process
● The tables can rest at 180 degree

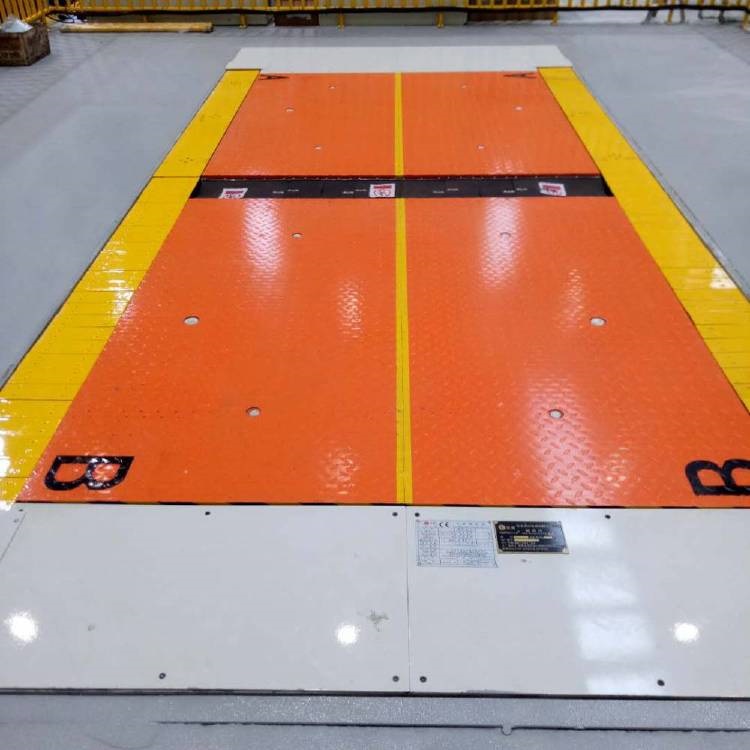

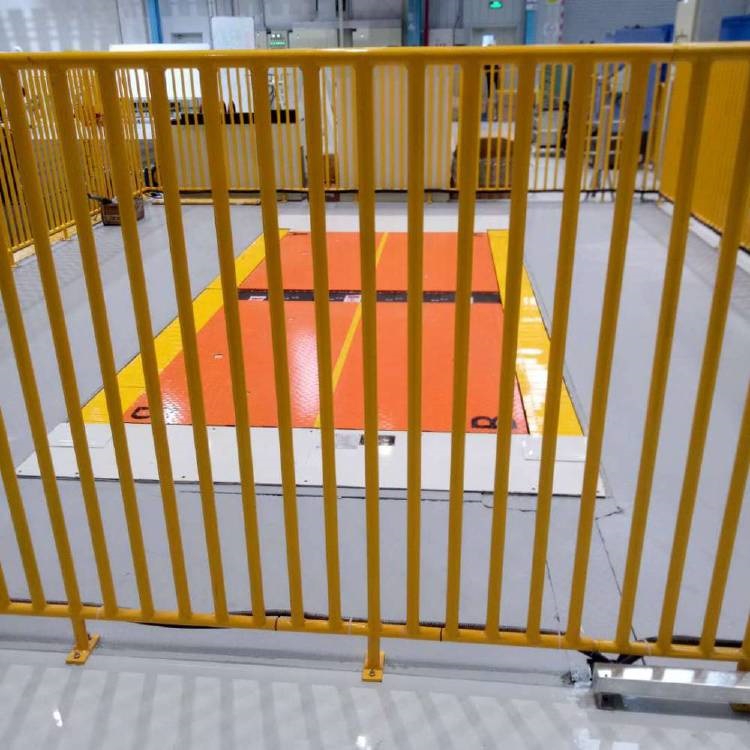

● Whole hydraulic system can be accommodated in pit
● Easy operation
Specs
| Model | Table Size (mm) | Height (mm) | Capacity (KN) | 0-90° (sec) | Weight (t) |
| PMF-5 | 1250×1100 | 300 | 50 | 20 | 2 |
| PMF-10 | 1400×1200 | 400 | 100 | 25 | 4 |
| PMF-15 | 1600×1400 | 470 | 150 | 30 | 6 |
| PMF-30 | 2000×2000 | 570 | 300 | 40 | 11 |
| PMF-50 | 2600×2600 | 800 | 500 | 150 | 18 |
1) The above technical parameters are for reference only and are subject to the actual device.
2) Customized Available.
